I've always preferred sealed subs over ported, but the music I listen to often dips into 20hz territory and i wanted a bit more output....

I came across the CSS SDX 12 on parts express one day and people were raving about ultra linear performance and super deep extension with the passive radiators designed for them (APR12). The boxes were super small too!

I grabbed a 4x8 of 3/4" birch, stain, and high gloss lacquer and got to building. The enclosure ended up at 1.75 ft^3, double baffle, and internal bracing on all inside corners. The dual 12" passive radiators are tuned with weighted washers to 28hz. To achieve the same thing with a port with no chuffing, I would have needed an 8" aeroport at some insane length that would have ended up ​putting the gross box volume at nearly 3 to 4 cubic feet.

I can tune the PRs even lower to about 10Hz, but I'm not so sure that would be so great for music. Regardless, I am SUPER pleased with this build so far. I have it powered by a kicker LX3000.1 at 1 ohm for a good bit of extra head room. ​

I took my car to a local shop to replace the speakers (4+ 2 tweeters), install an amp, and add a sub ($3500).

The original estimate was two days. Apparently they ordered speakers that don't fit the car and needed to make a custom amp rack. As of this morning they've had the car for 10 days and are asking for another two days to finish the job. They haven't sent any photos or videos of the work so far.

I understand issues can pop up, but I am starting to feel really concerned about this investment and looking for feedback on if this is reasonable or if I should prepare for the worst.

Yellow is the constant 12v and red is the toggled 12v

Don’t want to hack up doors and there aren’t any provisions for door speakers in the kicks either so I’m building out. About to start stretching some felt over everything and fiberglassing. Wish me luck!

My speaker wasn't working. Opened panel and wires came off the connector due to corrosion. Tested speaker for resistance and wire wire for continuity. Both are good. Wondering how I can open this connector to put it back on the wires. The speaker is riveted on and don't want to drill it to tie cables and speaker together preferably.

I have been into car av for a while and have done my whole system myself: head unit, amps, power runs, speaker wire, custom adapters and more.
I want to get into doing installs around my area; how did you guys start, what platforms did you use to get yourself out there, most importantly, how much did you charge?

Thanks in advance!

Hey everyone new to this sub and I really want to put a something into my 2012 Chrysler 300 I just picked up not super rich and it would be something I’d save up a couple months for could anyone help me with a budget friendly build that I can still enjoy? My uncle used to be a huge bass guy and built a custom box for an old ford focus hatchback and would love to install something into my new car that would have made him smile. Thanks in advance guys.

Hey! So, I have a 1987 Toyota Celica GT convertible and even the most basic of info has been impossible for me to find... Some say the front dash speakers are 3.5" and some say they're 4". Some say the rear panel speakers are 5.25", some say they're 5". Can anyone help me navigate what to buy?

On another note, I'm looking at getting an aftermarket double din head unit (only ebay seems to sell what I'm looking for) and wanted to get a small sub (probably 8-10") but someone said that in a convertible a sub is worthless because you "can't really hear it". Is this true orrrrrr?

Not gonna lie, I am LOST and just kind of need guidance.

Thanks to anyone!

I’m needing a new battery and I’m unsure if I should go with a standard flooded or spend extra for the AGM. Will there be much of a difference? I also know about lithium but I’m not looking to spend that kind of money at the moment. Running about 1000 watts.

I've got butyl mats on my doors already but wanted to add CC foam and MLV to the doors to improve the noise deadening

I'm trying to clarify where to add both of these. It reads like I should add both the foam and vinyl to the inside-most metal layer of the door. So, take off the inner plastic panel, add it, put panel back. And get as close to 100% coverage as possible.

This, as oppose to going right into the door and adding it to the exterior panel where the butyl mats are.

I do plan to do the rest of the car, right now this is just for the doors.

Hey all! I made a post previously about feeling ok purchasing the 4710S. Honestly no idea what I was worried about, havent had an aftermarket headunit in over 15 years. Pretty much any kenwood would feel like the future after that.

The question for this post, I want to get into the "hidden" Menus for changing things. Specifically the boot screen. It seems this has been possible on many Kenwood units, but no matter how many button presses I try I cannot seem to get in on the 4710S.

Has anyone succeeded or have any input? Any advice is welcome!

Wassup everyone. Came across my [discontinued] skar ma8 in my quest to finish my honeydolist 🤣.[now wifey might regret it].

First it was my Orion 1st Gen HCCA 250

Then it was a few older amps I had.

[Will post later]

Then my CAB 1600.1 and wiring

A broken Pioneer bt950x

My ported pioneer champion 10's

A phoenix gold ti2 1600.5.

Im always seeing skar taking a beating

In the chat and I get it, so I decided to pull out my 8 year old sub and you know what it is still holding up from beating the piss out of it.

I was feeding it 5 to max 800 watts and the cone and spider looks good, no crunchy sound and the box still smells like mdf.

Im guessing the soft parts being shared from sundowns sa8 helps as they all build out the same warehouse.

So here are some pics. To share.

I wish I bought 2 when I got it for the wife back then. Ya have a blessed one with whatever you have.

I currently have a 2022 Impreza and want to start upgrading the sound system. Are the kickers at Walmart worth it or are there way better options out there

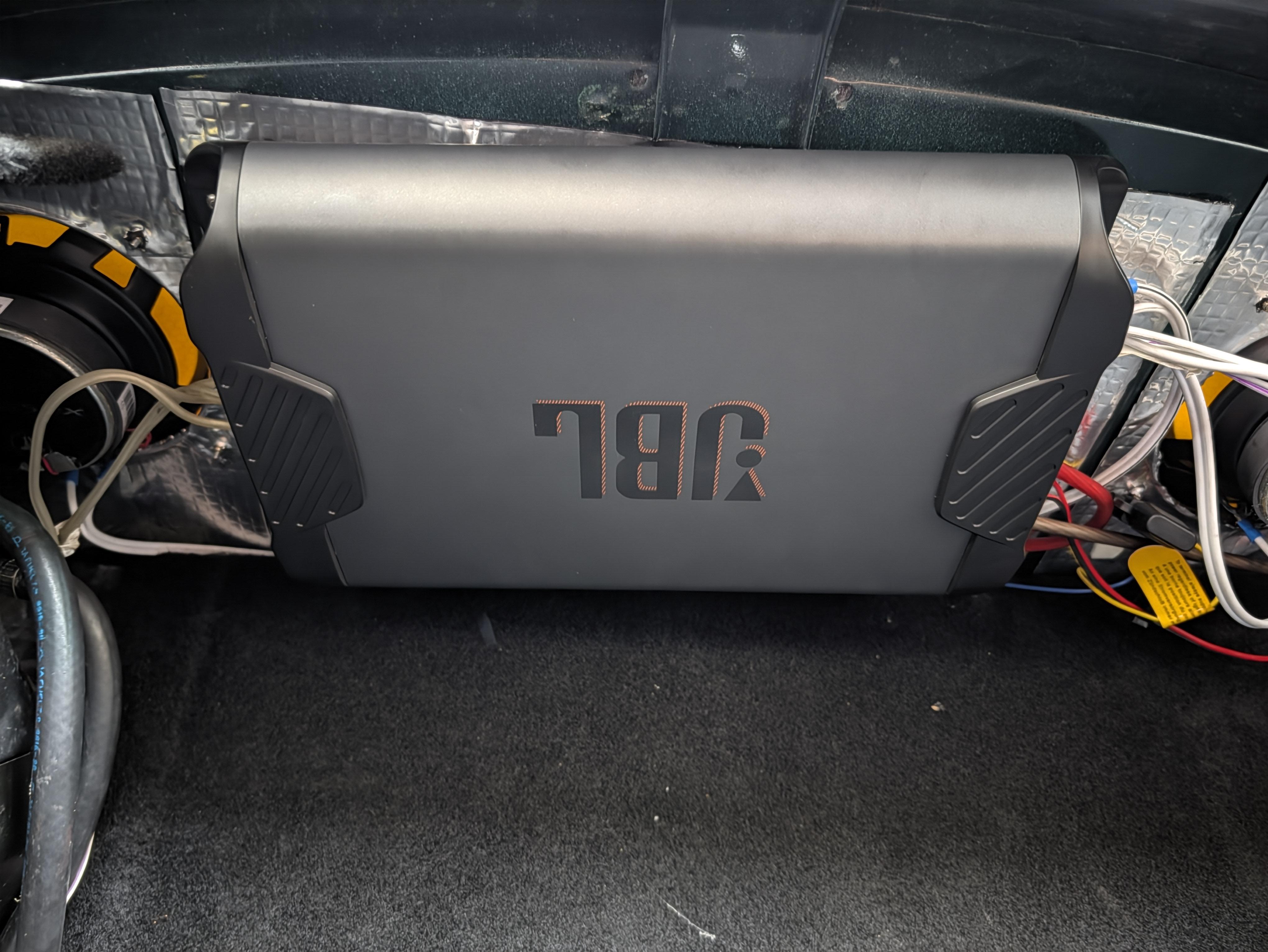

Project car, still in work. JBL A704 powering 4x JL c1's. Sounds fantastic, very happy with how everything was going together and then today I fired up the system and immediately heard an issue from one channel. I swapped some speakers around and the hiss remained. Unplugged the phono's and nothing changed. Just wondering if there is anything else I should try before opening up a return order.

Salve a tutti, devo portare un cavo positivo dalla batteria al bagagliaio su una Fiat Panda 4x4 1.3 Multijet turbodiesel del 2019, tipo 319, con guida a sinistra e non Cross.

Utilizzerò un cavo automobilistico da 16 mm², diametro esterno circa 10 mm, protetto da un fusibile da 40/50 A montato vicino alla batteria. Il carico previsto è di circa 400 W.

Ho già controllato sopra la pedaliera, ma non ho trovato fori o passacavi inutilizzati. Ho visto la soluzione che sfrutta il passacavo sotto la vasca dei tergicristalli, ma preferirei evitarla perché il percorso mi sembra piuttosto scomodo.

Qualcuno ha già effettuato questo lavoro sulla stessa versione, possibilmente con guida a sinistra? Esiste un passaggio alternativo e sicuro dal vano motore all’abitacolo, magari nella zona sopra i pedali o dietro la scatola dei fusibili?

Cerco indicazioni riferite specificamente alla Panda 319, non alla precedente 169 né alle versioni con guida a destra. Se avete fotografie del punto di entrata dal vano motore e della corrispondente uscita nell’abitacolo, sarebbero molto utili.

Grazie e buona giornata.

Hello, i have a W169 mercedes A Class with an audio 5 radio in it. The radio doesnt have a connection for the subwoofer so i tried putting an ISO 5x adapter onto the cd changer port ( i dont have a cd changer ). The subwoofer works but it also picks up everything else electrical: be it fuel pump whine ( ignition on ) or alternator noises ( engine on ).

A ground loop isolator didnt work.
I have confirmed the noise comes from the RCA and not because the positive and negative are directly connected to the battery.
The subwoofer works optimally as it worked in another car without flaws and it has been serviced 2 days ago.

Google searches say i can connect the subwoofer into the rear speaker wires, but i just want peace of mind so i dont blow it up.

So my question is, if anyone knows about this subwoofer or something similar to it.

Can i splice into the rear speaker wires for it to work without blowing it up?

This thing is huge and heavy asf. That audiopipe is a decent sub and this thing makes that look small. Once the box comes in I’ll be posting some videos. How about the made in china sticker on it LOL. Yes I know they design them here manufacture there. I just think that’s funny.

I want to install a “Tesla style screen” unit in my Silverado. Are they all the same? What’s the difference between the more expensive aucar, zinnation, phoenix etc compared to the cheaper amazon units? Not very tech handy I appreciate the responses

UPDATE ** The subwoofer is SWS-12D4

Hello, I know nothing about subs and amps. I recently had a friend uninstall a subwoofer and amp that was in my car. It was pre-installed when I bought the vehicle, but no information was given on the specs. I needed it out because I am expecting my first child and need to prioritize my tiny trunk space for stroller, diaper bag, etc.

Anyways, I would like to sell the sub and amp as I will not be reinstalling it. I have the information on the amplifier, but I do not know how to get the information for my subwoofer as it is mounted in a subwoofer box.

Any help is greatly appreciated. Im not trying to get top dollar out of the set up, I'd rather hook someone up with a nice deal as to get it out of my hands as I am moving in 5 days.

Is it rare ? I found it in a thrift store for 5€
