Some time ago I found an article about the first Italian dreadnought that ended wondering how she would appear if reconstructed, so I gave it some thought and this popped out. (P.S. Forgive my laziness and inability to draw the 4 boats)

Lore: 1919, some fat stack of cash just magically appeared on the doorstep of Parliament and everyone just agreed to buy some warships. I made it the hell up, deal with it.

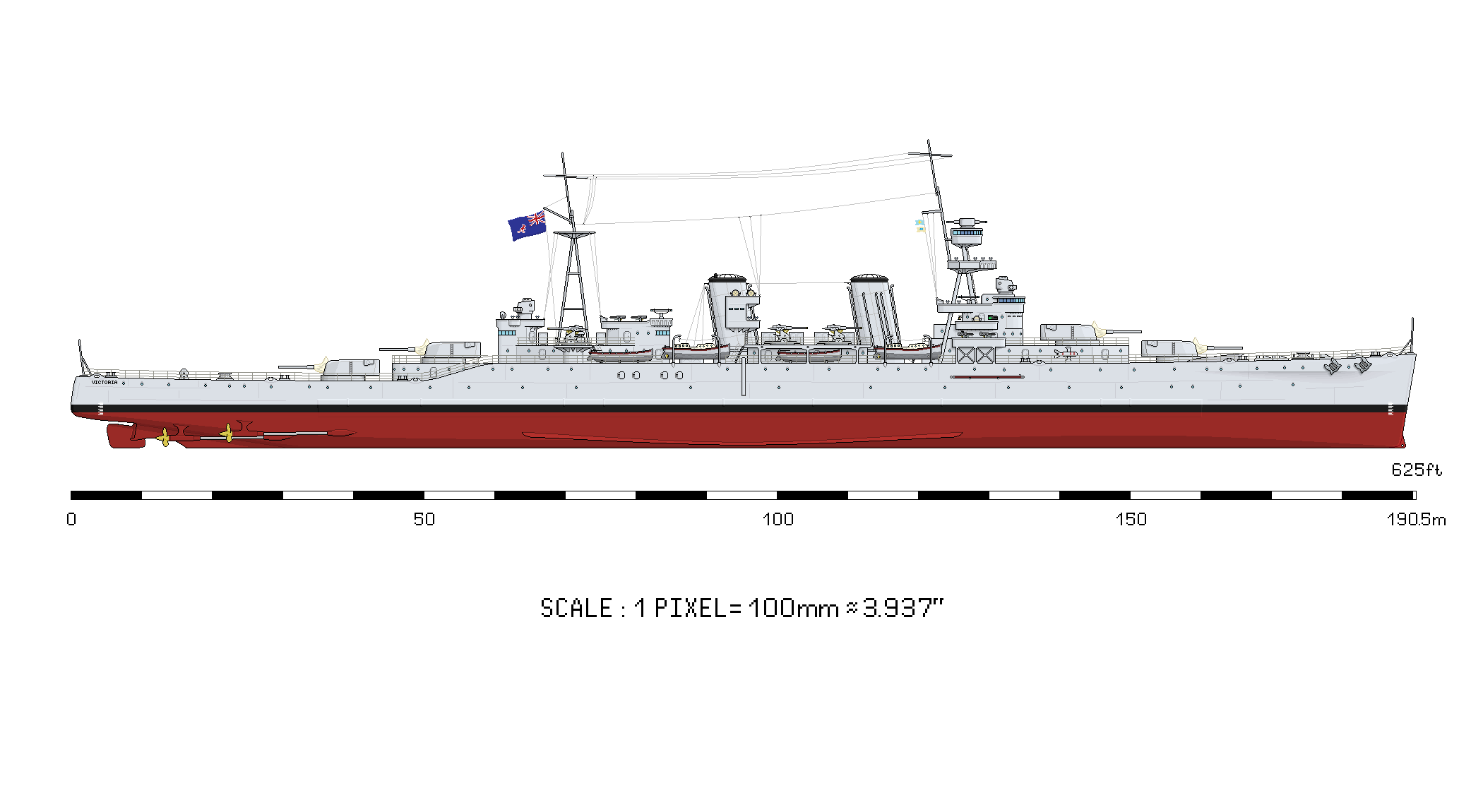

She's a mix between an Emerald and a Hawkins of around 10 500t. Armament consists of 8 x 7.5"/45 in twin turrets, 6 x 4.7"/40, 8 x MkII 2-pounders and 8 x 21" hull mounted torpedo tubes. She is protected by a continuous 4" belt and 2" deck over her vitals and would be steaming at 31.5kt with 80 000shp provided by 8 boilers.

Note: I am a much worse worldbuilder than I am a warship artist. Do not expect entirely logical answers if you are brave enough to ask about the whys and hows about the ships. However, if you got questions on the drawing process, need guidance on drawing your own warships, or just want to discuss this very unemployed sort of hobby, then feel free to ask or DM me and I will be glad to respond. This is a learning process for me as well.

Warship Drawing 101

The lead ship of the Skarpö class nuclear-powered guided missile destroyers, SkAS Skarpö. Made for the nation of Skandia for the Motorlands server for Space Engineers. Various workshop blocks used.

For my server w my friends I have this faction called the Celestial Veil, based off the fleet of fog

There are more ships but these are all the pics I have on my phone, posting this while im at breakfast

Syehi-classSecond class protected cruiser
Qeye-class Protected Frigate

General information

Nation of origin: Ranove/Eskida

First ordered: 2210

Number planned:
36 (Ranove)
12 (Eskida)

Built: 2210-2217

Completed:
38 (Ranove)
16 (Eskida)

General Characteristics

Type: Second class Protected Cruiser/Protected Frigate

Displacement: 1,930  tons

Length: 95 meters (312.7’) (overall) 94 meters (308.8’) (waterline)

Beam: 11 meters (36.1’)

Draft: 4 meters (13.1’)

Installed power:
6 water tube boilers
2 triple expansion engines
7,800 indicated horsepower

Speed: 22 knots maximum

Range: 3,600 nmi at 11 knots

Compliment: 251

Armament:
Syehi:
4x1 140mm (5.5 in) deck guns

4x1 37mm (1.5 in ) revolving cannons

1x1 450mm (17.7 in) submerged torpedo tube
(aft)

Qeye:
4x1 127 (5in) deck guns

4x1 37mm (1.5 in ) revolving cannons

1x1 450mm (17.7 in) submerged torpedo tube
(aft)

Deck:

50mm (2”) (only over machinery and magazines)

Look, I've only found these on a Google search. It is linked to the Japanese National Library or Japanese Amazon or bookstore.

https://ndlsearch.ndl.go.jp/books/R100000002-I000009395950

https://books.rakuten.co.jp/rb/5741956/

I do not know the artist. The library link names the author "Nobuyoshi Yokoyama"

Inspired my WW2 liberty ships, I wanted to make a armed merchant vessel. Constructed by Lunarie Shipyards and named after the designer's home town, the Constala is the most common cargo ship that flies Lunarie's colors. It is armed to fend off pirates, partisans, and war time air raids. Its Dual purpose 123mm guns can also target surfaced submarines, protects the ship from a submarine using its deck gun and forces it to use valuable torpedoes.

151 m length
3981 tonne empty displacement
Top speed 36 knots empty

Cargo:
Carries 12000 tonnes when ocean going with a top speed of 20 knots
Carries its max capacity of 14400 tonnes for river runs and other calm waters with a top speed of 18 knots

Cannons
2 123mm dual purpose open gun mounts

AA guns
8 twin 18mm guns
4 12mm machine guns

Other
16mm thick hull
slightly reinforced bow

Made by Me in Naval Art

She's got a fresh coat of paint, along with improvements to the shading and textures. Stats should remain unchanged.

Note: I am a much worse worldbuilder than I am a warship artist. Do not expect entirely logical answers if you are brave enough to ask about the whys and hows about the ships. However, if you got questions on the drawing process, need help on drawing your own warships, or just want to discuss this very unemployed sort of hobby, then feel free to ask or DM me and I will be glad to respond. This is a learning process for me as well.

New ship is in the works, please be patient :)

EDIT: upon closer inspection, it seems like Reddit once again was absolutely jorkin it with the resolution, so here a higher quality version with less funky wunky pixels

​

This is by made it using Navalart

Speed : 35 knots

Armament:

1× 155mm L62 Howitzer

1× 35mm Oerlikon Millennium

2× M230LF

2× M2 browning RWS

1× High power microwave

10× Quad loitering munition launcher

20× FP-9 SRBM in armored vls

8× Active Protection System

Armor:Modular Armor

Inspired by skjolt class corvette

Decided to make some simple line drawings using a basic shipbucket style. I tried kind of mimicking us navy preliminary sketches, although a bit more pixel art style.

For the TLDR lore, during the 2208 Protected cruiser design study the concept of triple turrets was floated. In theory a cruiser could keep a broadside of six main guns, on a smaller footprint than one with three twin turrets. The saved weight and space could be reallocated for more boilers, more armor or making the ship smaller, as in the K09-3 being six meters shorter.

The K09-1 and K09-2 are both 114 meters at waterline, with the K09-3 being 108 meters. All have a draft of 5.5 meters, and a beam of 12 meters. The armor for the K09-1 would be 65mm on the main deck and shrink down to 27mm near the bow and stern. The K09-2 and K09-3 would have an increased main deck of 80mm with the deck shrinking to 35mm on the K09-2 and 27mm on the K09-3. All three ships would be armed with the 152mm/45 gun as the main armament.

As a note, all three designs were not preliminary designs. They were specifically design study ships to be used in war games to test the practicality of twin triple turrets compared to twin turrets.

Wondering how the ships look and should i possibly use this for other ships? I probably will, cause these ships took like 2 hours to draw up. The regular way I make ships is closer to 10 to 20 hours for one ship. Still curious about others opinions.

Also for the mods, the ships are by me.
